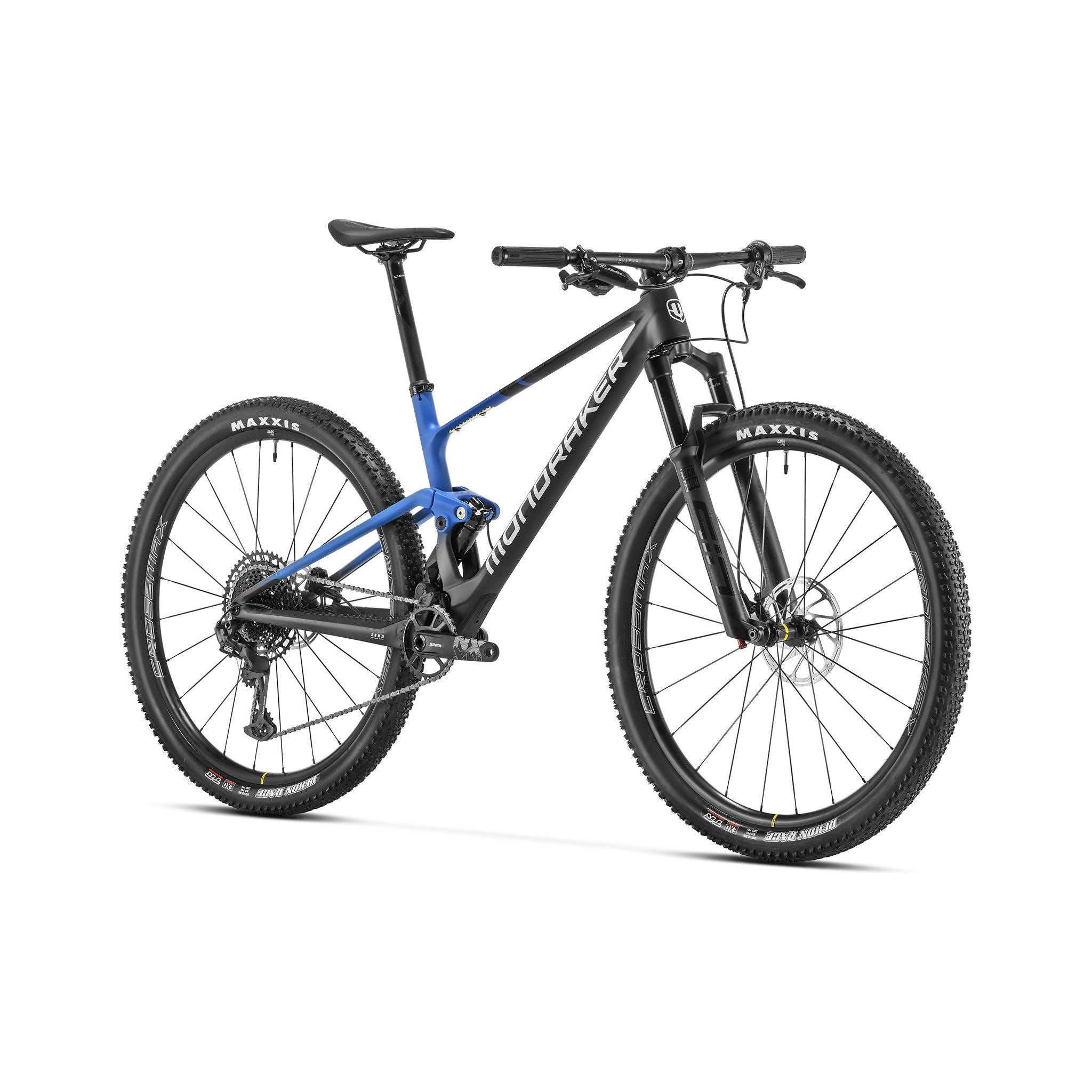

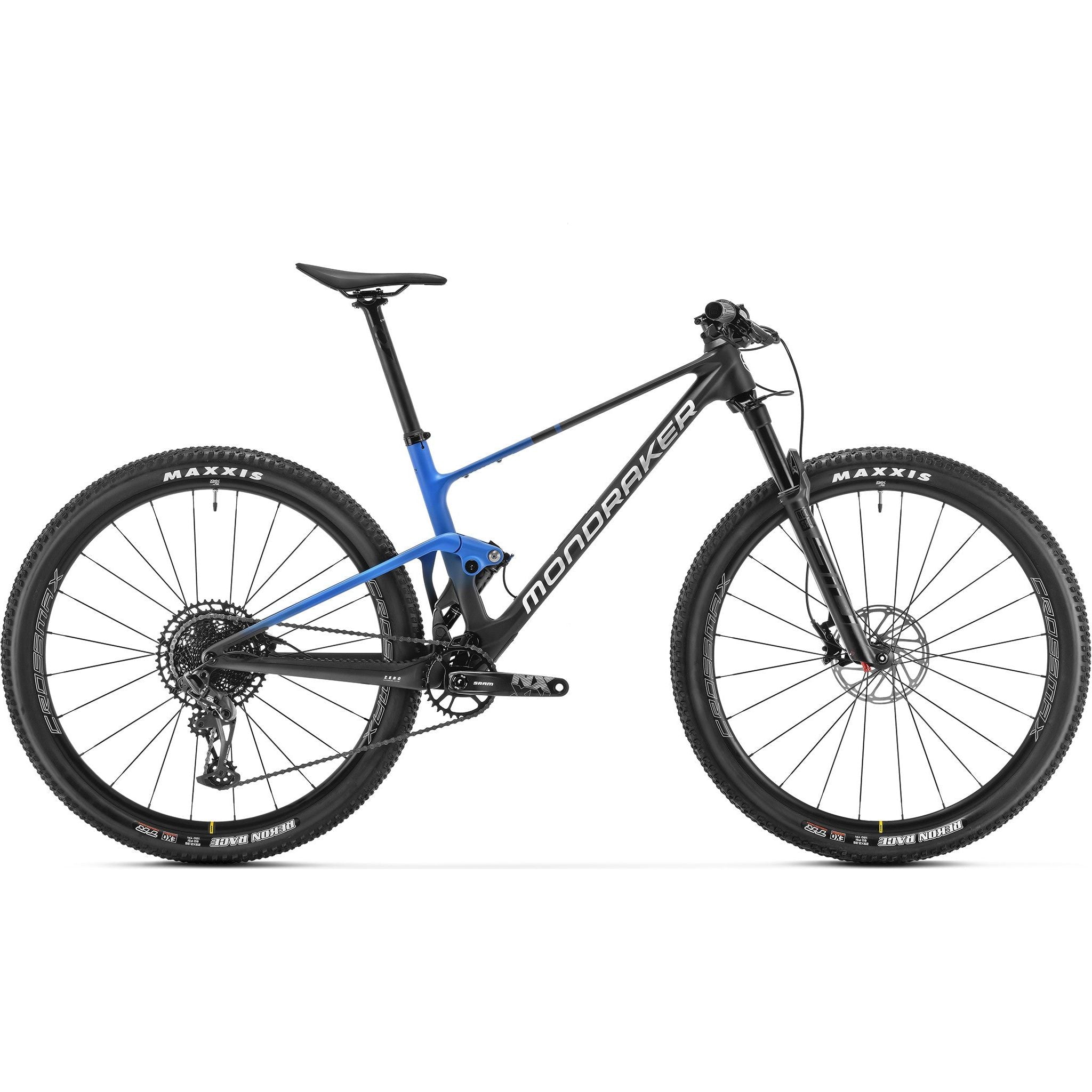

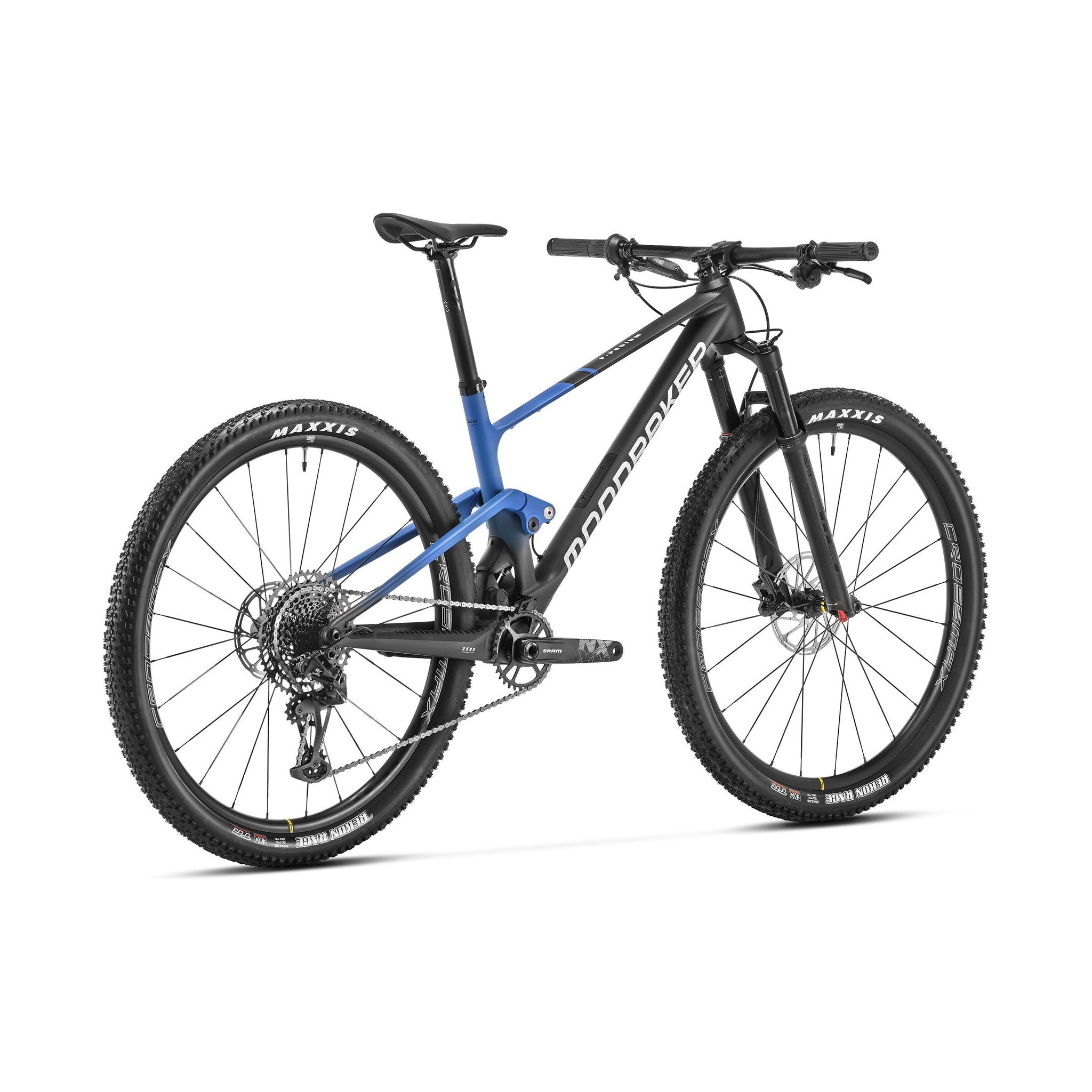

Mondraker F-Podium Carbon Mountain Bike

• STEALTH AIR: is the most refined and lightest Carbon manufacturing process at Mondraker.


• ZERO SUSPENSION: is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.

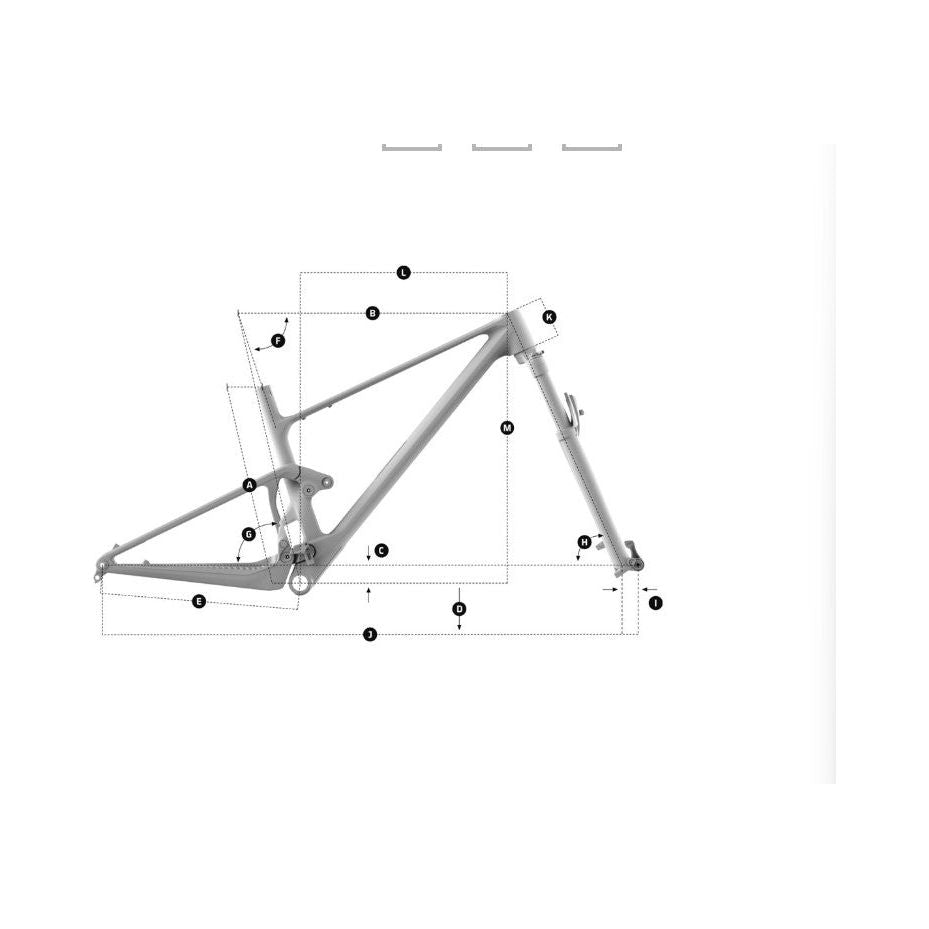

• FORWARD GEOMETRY: has proven to be the pioneering geometric benchmark for the most advanced high-performance bikes, and this is one of our most important and unique proprietary technologies today. Every year we continue to refine the concept and for 2023 we have implemented slight geometry changes to improve performance even further, increasing riding efficiency and control in bike handling.

Frame

• F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Rear shock

• Rockshox SID Luxe 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Fork

• Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload

Headset

• Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Handlebar

• Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Seatpost

• Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

Front brake

• Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever

• Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Spokes

• Mavic straight-pull double butted, contactless lacing

Rear hub

• Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub

Rear tire

• Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Rings

• 34T, steel, X-Sync 2

Chain

• Sram SX Eagle, 12s, Powerlock

Shift levers

• Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Derailleur hanger

• Sram UDH

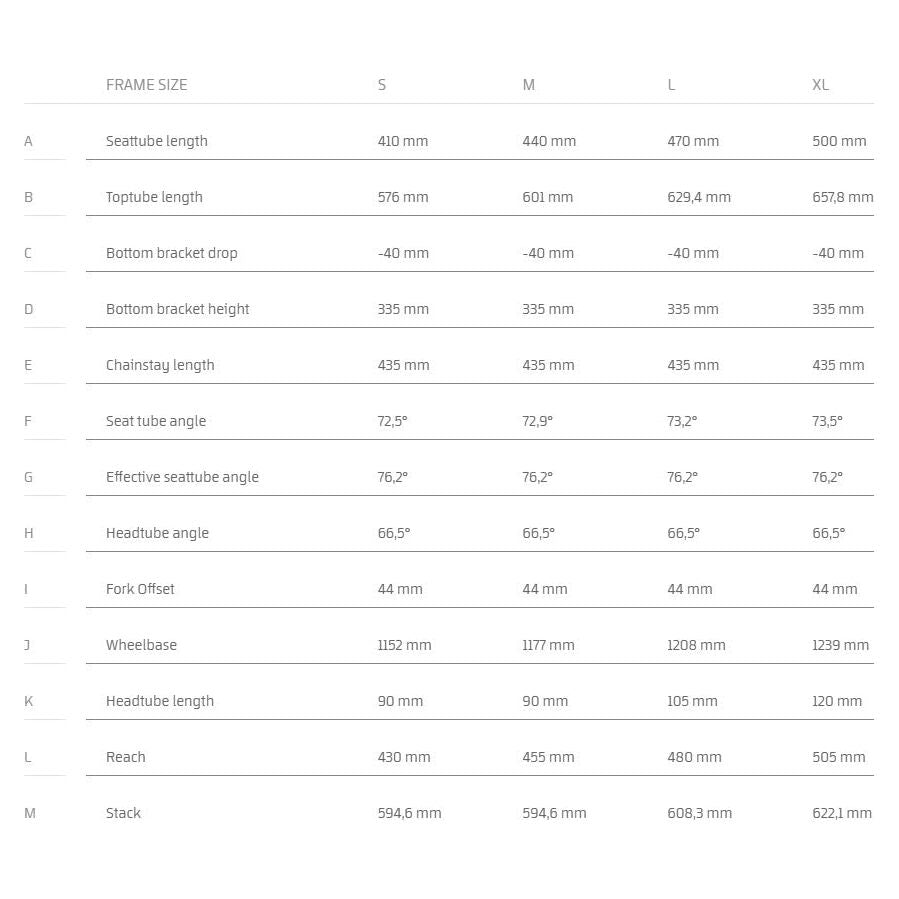

Sizes

• S: 410mm / M: 440mm / L: 470mm / XL: 500mm

Shock settings

• Medium compression, medium rebound, Lockout 430, 1 Token

Fork remote

• RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock

Stem

• MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

Grips

• Rock Shox Twistloc grips

Saddle

• Fizik Vento Argo X5

Rear brake

• Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rims

• Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

Front hub

• Mavic, Boost 15x110mm, IS 6 bolts

Front tire

• Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

• Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

Bottom bracket

• Sram DUB BSA, sealed bearings, 73mm

Rear derrailleur

• Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Casette

• Sram PG-1230, 11-50T, 12s

Weight

• 12,2 kg
